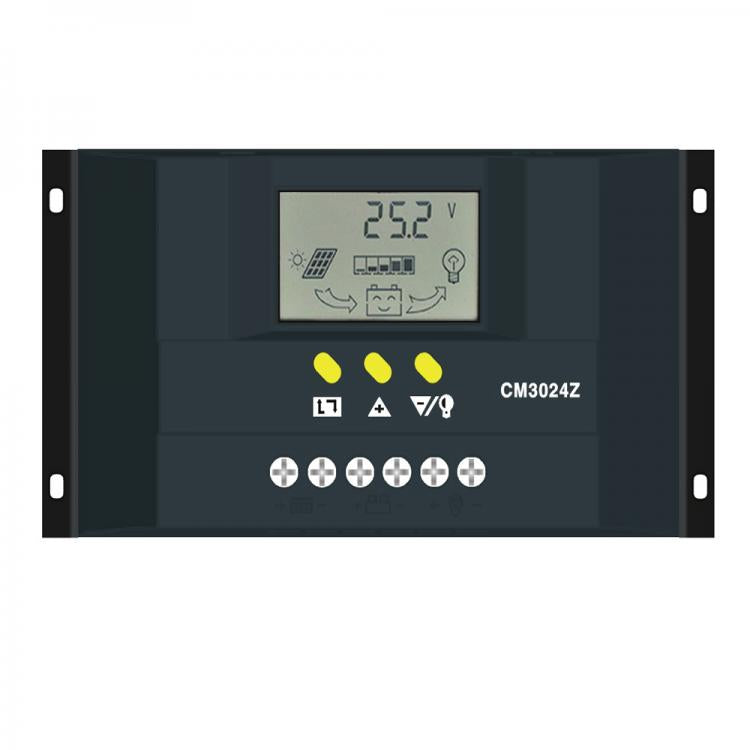

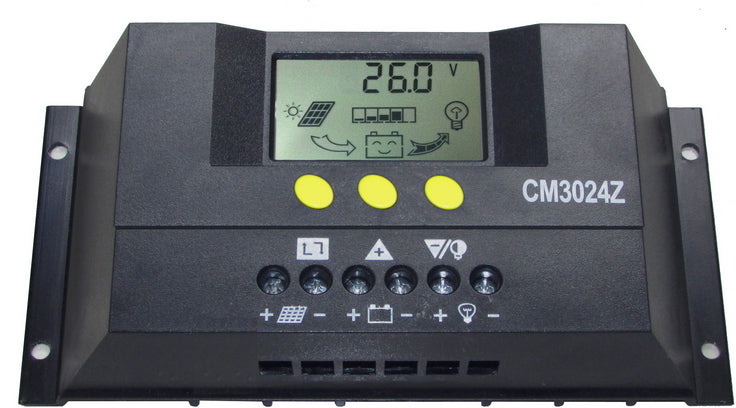

CONTROLLER REGOLATORE DI CARICA PANNELLI SOLARI 12V/24V 30A AUTOMATICO PANNELLO

Regolatore di carica professionale 30AH 12/24V con aletta di raffreddamento in alluminio, schermo LCD con indicazione delle funzione, tensione di ingresso fino a 50V e tensione di carica batteria con adattamento automatico.

Caratteristiche

• Image of LCD graphic symbol
• Simple button operation
• Automatic Identification System Voltage level
• Intelligent PWM charge mode
• Automatic Temperature Compensation
• Adjustable charge-discharge control parameters
• Settable Operating mode of Load
• Overload, Short Circuit Protection
• Remote monitoring and control function (custom) Battery reverse-discharge protection
• Battery Low Voltage Disconnection (LVD) Battery reverse connection protection
• Accumulated function of charge and discharge Ampere hours

Specifiche

• Data Model : CM3024Z
• Rated Current: 30A
• Rated Voltage: 12V/24V
• Temperature: -10℃~60℃
• Open Circuit: solar panel ≤50V
• Storage temperature: -30℃~70℃
• Float Voltage: 13.8V/27.6V
• Humidity requirements: ≤90％,no condensation
• Low Voltage Disconnection(LVD): 10.7V/21.4V
• Size: 90 ×188×48 mm
• Low Voltage Reconnection(LVR) 12.5V/25.0V
• Mounting hole spacing: 60 ×178 mm --Φ5
• No load loss: ≤30mA
• weight: 360g
• Loop Voltage Drop: ≤170mV
• Charging Mode PWM mode
• Temperature Compensation: -4mV/Cell/℃
• Notes Model suffix “Z” represent automatic identify system voltage level，
• “T” represent controller with remote monitoring.

Contenuto della confezione

• Solar Charge Controller CM3024Z 12/24V 30AH
• Connector
• User Manual
